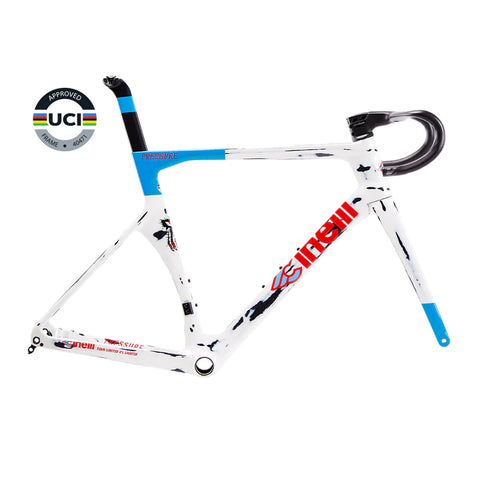

CINELLI PRESSURE COLPACK TEAM EDITION 2023 | FRAMESET
To celebrate the 5th year of collaboration with Team Colpack Ballan CSB, the most successful development team in the history of Italian cycling, we have designed a special limited edition of our flagship racing frame, Pressure. Each frame is handpainted to order in Italy following an intensively artisanal process developed internally Cinelli. The raw frame is painted with a white primer which is then sanded back by hand to create a streaked “camouflage” effect.
Team colour decals are then added over the sanded-back frame before being coated in a gloss clearcoat. In this way each frame remains entirely unique (as well as 4% lighter than our production painted frames). The Pressure itself is Cinelli’s flaghship racing frame, interpreting the competitive rider’s need for full integration and aerodynamics through the lens of essential Italian design.
The result is a lightweight high-modulus carbon fiber frame with extremely lively and aggressive road handling whose lay-up has been fine-tuned over a two-year period of testing with Team Colpack Ballan CSB.
Born to race, this monocoque high modulus carbon T700 fiber aero road bike is designed to cut through the air. Password: integrate! The new born Cinelli aerodynamic racing frame integrates anything possible: the special aero seat tube, the custom color FSA Vision Metron 5D ACR fully integrated aero handlebar, with integrated headset, cockpit and fork, for the cleanest cable routing solution and fastest racing geometry ever. The bicycle natural choice is for electronic groupset.

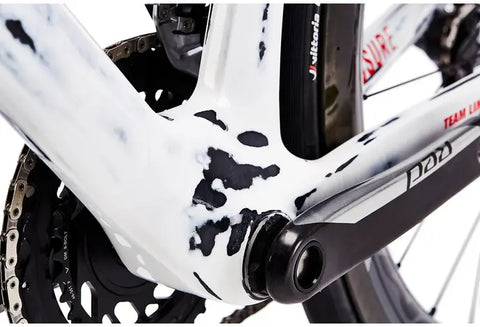

Disc brake and thru-axle with the dropped seat stays design increase the aerodynamics alongside with the global stiffness of the frame, for best reactivity and maximum control. Pressure. Double-check the bottom bracket to fully appreciate the power and meaning of this racing machine. A hint? London Calling? Smashed fender P-bass? More than enough to guess. In Italo flagship design colors.

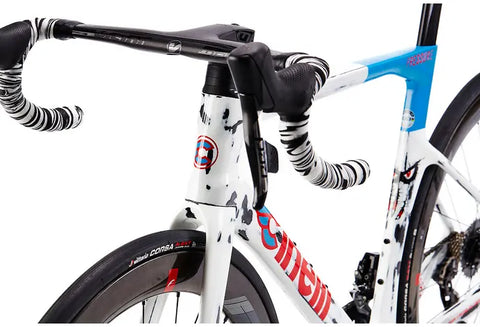

TOTAL INTEGRATED SOLUTION Vision Metron 5D handlebar's ACR system, with a fully integrated bar, cockpit headset and fork, coupled with the use of PU Molds in the curing for the cleanest and most efficient internal wire passage, emphasize the purest aesthetic and Pressure artwork. Remember to always smile while steering.
AERO SECTION ELEMENTS Aero seat tube and dropped seat stays are functional to best aerodynamics and stiffness and join forces with the other aero elements of the frame for best control and power.

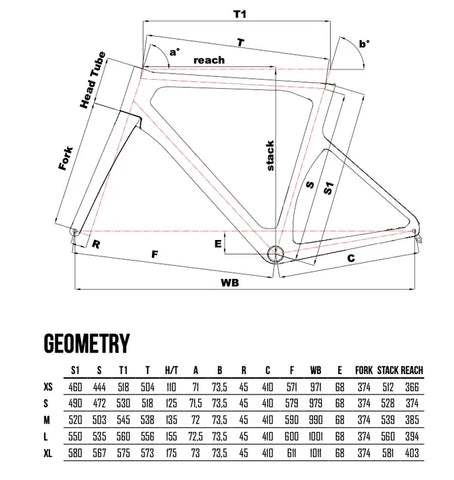

DYNAMIC RACING GEOMETRY The thru-axle and disc brake choice with internal wire routing allow for the cleanest and fastest design, in an overall geometry which leads to the most compact and aerodynamic position of the rider.
TECHNICAL DETAIS
-
SIZES XS (46) - S (49) - M (52) - L (55) - XL (58)
-
FRAME COLUMBUS T800 Carbon Monocoque
-
HEADSET IS 52/28.6 | IS 52/40 FSA ACR
-
SEAT POST Aero Integrated / Carbon rail compatible / L 300mm (XS) - 350mm (S-M-L-XL)
-
SEAT CLAMP Integrated
-
BB STANDARD Pressfit 86,5x41mm
-
FT. DERAILLEUR Braze on
-
CABLE ROUTING Full internal - Di2/EPS compatible
-
COLOR Team Edition
-
TIRE CLEARANCE Up to 700x30c
-
FORK COLUMBUS Disc 1-1/8” - 1-1/2” Tapered Carbon Monocoque
-
WEIGHT Frame 990 g (size M) - Fork 390g (uncut)
-
BRAKES STANDARD Flat mount disc brake Rotor size up to 160mm
-
HUB SPACING Rear TA Ø12x142mm / M12x1,5 L165mm skewer Front TA Ø12x100mm / M12x1,5 L120mm skewer
-
FEATURES Di2-EPS compatible / Skewer included
